Grundfos JP 5-48 PT-V Jet Pressure Pump with Pressure Switch & 20L Tank 1.01KW 240V (Part No. 99463897)

Grundfos JP 5-48 PT-V Jet Pressure Pump with Pressure Switch & 20L Tank 1.01KW 240V (Part No. 99463897)

Name: Grundfos JP 5-48 PT-V Jet Pressure Pump with Pressure Switch & 20L Tank 1.01KW 240V (Part No. 99463897)
SKU: 821179

$ 65.98

$ 85.77

Unavailable

Grundfos JP 5-48 PT-V Jet Pressure Pump with Pressure Switch & 20L Tank 1.01KW 240V (Part No. 99463897)

$ 65.98

$ 85.77

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Product Details

＋

[shortdesc] The JP PT-V booster consists of a Self Priming Jet Pump and a Grundfos Pressure Switch and 20L Tank. The Pressure Switch is preset to 2.2 bar cut-in. [/shortdesc] [specsheet] [/specsheet] [specification]

TECHNICAL DATA

Mains voltage: 1 x 240 V, 50 Hz
Enclosure class: IP65
Insulation class: F
Start/stop frequency: Max. 20 per hour
Controller: Pressure Switch set at 2.2 bar cut-in

[/specification]

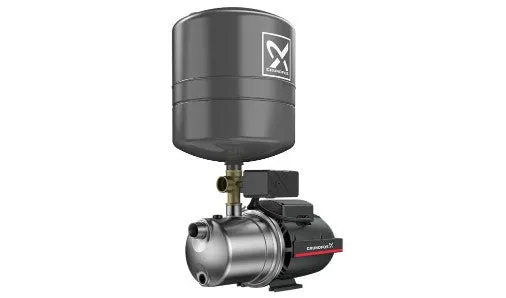

Grundfos JP 5-48 PT-V Jet Pressure Pump with Pressure Switch & 20L Tank.

The Grundfos JP is a compact booster pump designed for domestic and garden use. The booster unit consists of a Grundfos JP self-priming, composite, single-stage jet-pump, pressure switch and 20L tank.

Components :

• Self-priming JP pump
• 20 L diaphragm tank
• Pressure switch (cut-in pressure set at 2.2 bar) and pressure gauge
• Cable 1.5 m with plug
